- Place of Origin: jinan
- Brand Name: ousu
- Model Number: CMD-1325ATC
Product Features
atc cnc router/3 axis milling machine
Product Detail
| Control system | Taiwan SYNTEC control system |
| Working area | 1300*2500mm |
| Application | Door, plate-type furniture engraving cutting |
| Software | ARTCAM, Alphacam 2014 |
| Structure | Stable strong steel pipe welding table |
| Transmission | 25mm Linear rail and ball screw |
| Spindle | 9KW ATC spindle wind cooling |
| Working Table | Vacuum Table |
| Color | White/Blue/Red |
| Key word | Woodworking CNC Router |
| Product Keywords | atc cnc router/3 axis cnc milling machine,atc cnc router woodworking machine,atc cnc router wood milling |
Machining Area :1300*2500mm (Optional 1500x3000mm/2000x3000mm)
Z axis travel : 200mm
Running Speed: 50m/min
Spindle Motor: 9.0kw ATC spindle (0~24000rpm)
Tool Magazine: Carousel design(revolver tool-changer) with 12 tool holders
Driving System: Japanese Yaskawa servo motor and drivers
Guide Rail: Taiwan TBI rail (Y axis=30mm, X/Z axis=25mm)
Rack and pinion: Germany helical rack with high precision
Ball Screw: Taiwan TBI ball-screw for Z axis transmission
Power Supply: AC380V/3Phase 50HZ
AC220V/3Phase 60HZ
Inverter: DELTA 11kw Inverter 220V/ 3phase 60HZ
Control System: Taiwan Syntec 20MAcontroller
Electric: Schneider electric parts
Table: Vacuum working table with pop-up
Vacuum pump: High quality vacuum pump wind-cooling
Weight: 1800/2300/2800kgs
Warranty: Spindle motor is for half a year, others for one year.
Working Samples:
Furniture: wooden doors, cabinets. Plate, office and wood furniture, tables, chair, doors and windows.
The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

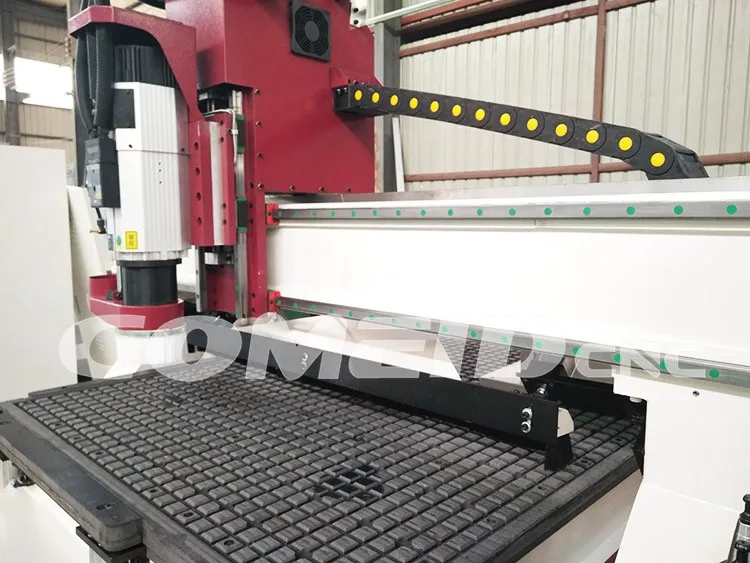

Working area: 1300*2500*200mm

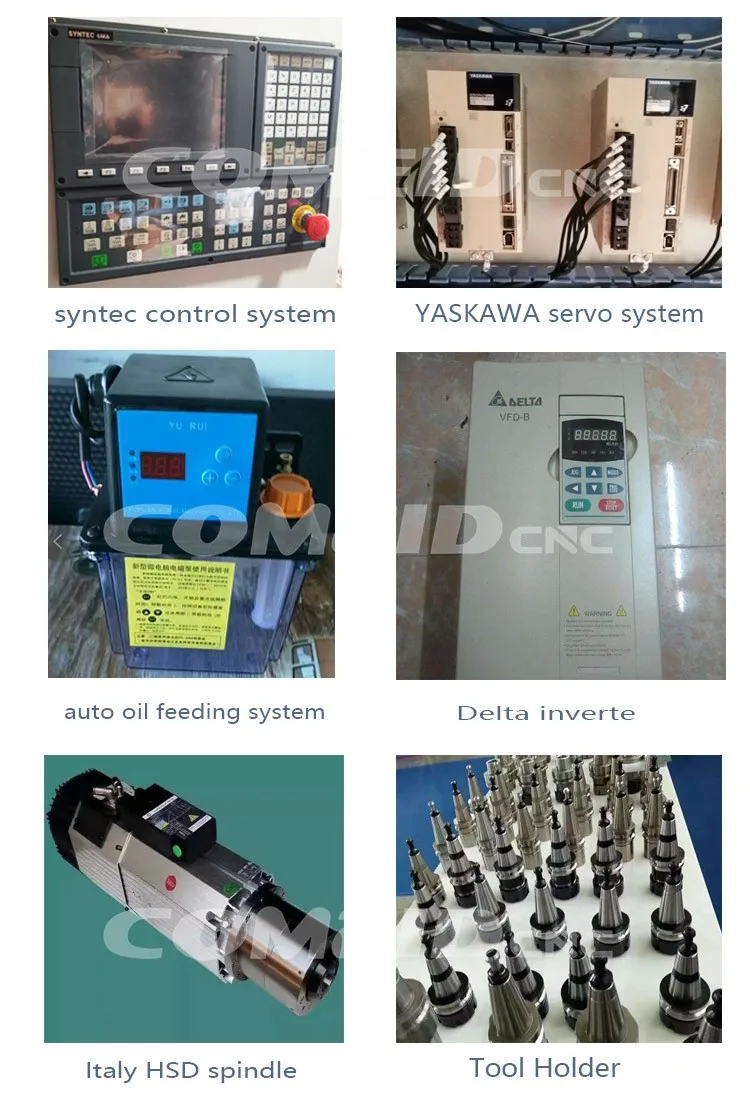

Heavy duty structure with 8mm thickness steel
Italy HSD 9.0kw air cooling spindle with auto tool change
Japan servo motors and drivers
Delta inverter
Original Taiwan Syntec the best controller
Schneider Electronics from France
Omron limited switch from Japan
T-slot & vacuum combination table
Taiwan TBI ball screw
Professional tool box
oil injection system
Tool sensor
Powder coating technology to avoid damage
Machine Model | CMD-1325 Woodworking CNC Router |
Spindle Motor | HSD 9.0KW Wind-cooling |
Control System | Taiwan SYNTEC control system |
Guide Rail | 25mm linear rails and Auto self lubrication |
Running Speed | 60m/min |
Max Working Speed | 25m/min |
Repeat Location | 0.025mm |
Driver | Servo Motor(Japanese YASKAWA brandbrush-less motor system) |
Cutter | 6mm,12.7mm(optional) |
ATC | Rotating disc type ATC 12 Tools |
Software | ARTCAM, Alphacam |
Working Size | 1300×2500×200 mm |
Packing Size | 3.3*2.4*1.8m |
N.W | 1800KG |
