- Place of Origin: jinan
- Brand Name: ousu
- Model Number: CMD-1325ATC
Product Features

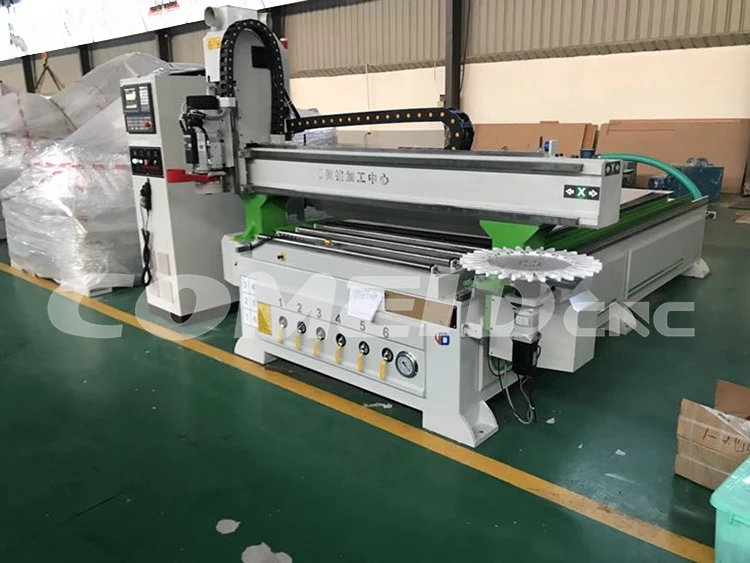

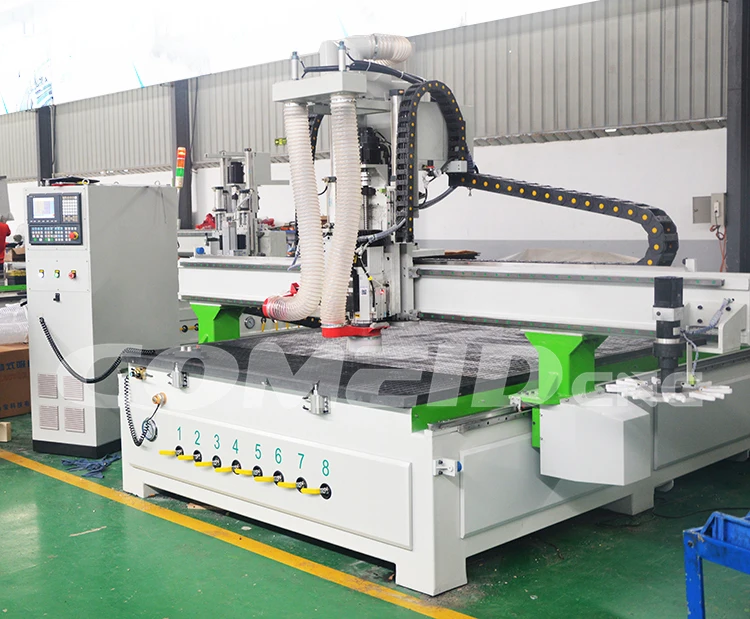

1325 ATC cnc router disk 8 tools
Product Detail
| Control system | Taiwan SYNTEC control system |
| Working area | 1300*2500mm |
| Application | wood furniture engraving cutting |
| Software | ARTCAM,Type3 |
| Structure | Stable strong steel welding table |
| Transmission | 25mm Linear rail and ball screw |
| Spindle | 9KW ATC spindle wind cooling |
| Working Table | Vacuum Table |
| Color | White/Blue |
| Key word | ATC CNC Router |
| Product Keywords | 1325 ATC cnc router disk 8 tools,1325 ATC cnc router disk 20 tools,1325 ATC cnc router disk 12 tools |
Quality assurance:
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
1.Furniture: plate, office furniture, doors, kitchen cabinets.
2.Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3.Board processing: insulation, plastic chemical components, PCB, car bod,bowling track, ABS, PP, PE, etc.
4.Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.

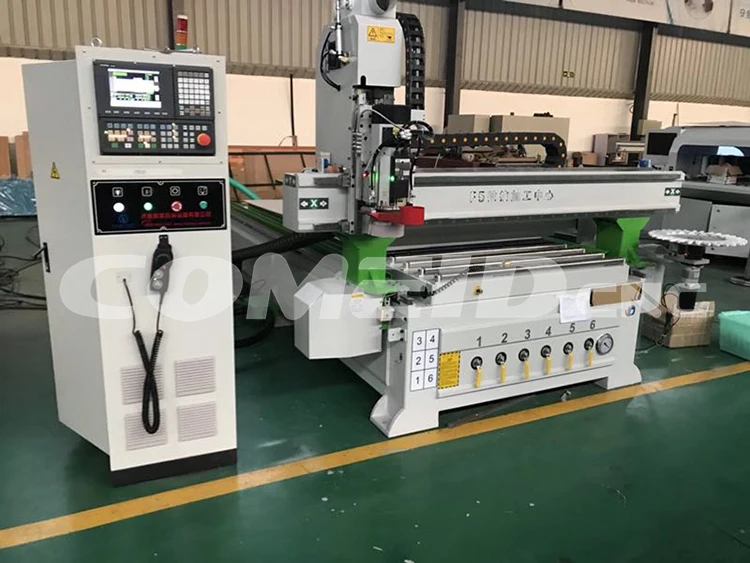

1. SYNTEC Control System, Taiwan HIWIN Linear Rails, YASKAWA servo
Motor and Driver, Italian ATC spindle.
2. Tool magazine system, with high efficiency with multi-function
boring unit and saw from Germany. It realize side processing.
3. Intelligent processing cross-border protection function can prevent the excessive processing from mechanical collision.

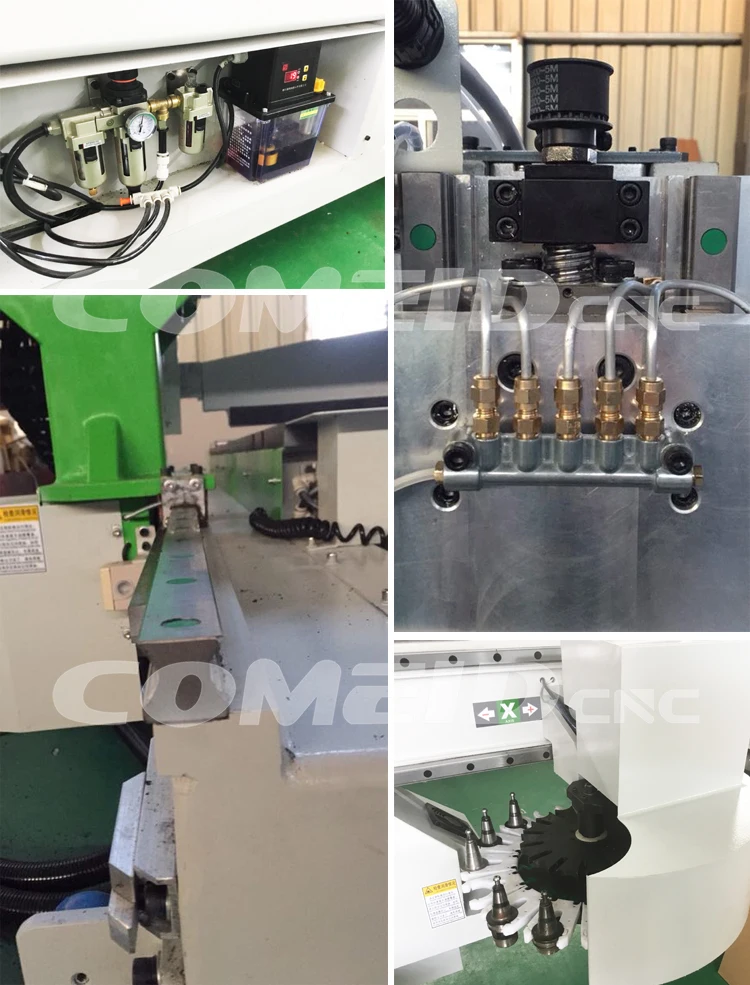

4. Auto lubrication system, to fill the maintenance with one touch.
5.Adopt super heavy-duty steel frame structure.
6.Adopt great power servo driving system, higher processing precision.
Machine Model | CMD-1325 ATC CNC Router |
Spindle Motor | HSD 9.0KW air-cooling |
Control System | Taiwan SYNTEC control system |
Guide Rail | 25mm linear rails and Auto self lubrication |
Running Speed | 60m/min |
Max Working Speed | 25m/min |
Repeat Location | 0.025mm |
Driver | Servo Motor(Japanese YASKAWA brandbrush-less motor system) |
Cutter | 6mm,12.7mm(optional) |
ATC | Rotating disc type ATC 12 Tools |
Software | ARTCAM, TYPE3, |
Working Size | 1300×2500×200 mm |
Packing Size | 3.3*2.4*1.8m |
N.W | 1800KG
|
