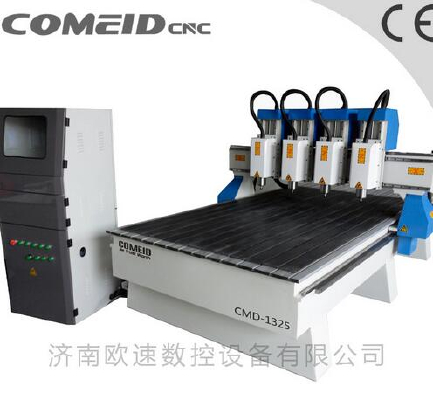

Performance characteristics:

Suitable for three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint free door, screen, craft window processing, shoe polisher, advertisement logo, 3D mould, sofa bed wood engraving, woodworking Louhua technology, 3D wave plate, aluminum plate cutting, large-scale architectural model making industry and furniture, mahogany furniture, solid wood doors, decorative materials, game cabinets and panels, auxiliary processing mahjong table, computer desk and panel furniture products.

1 high speed machining: straight line speed of 30 m / min.

2 excellent components: the use of the German ball screw, imported linear guide rail, the use of excellent stepper system, imported bearings, high power spindle motor.

3 reasonable design: the use of advanced dual rack and pinion drive, speed, power.

4 compatible software: can be compatible with Type3/Artcam/, such as a variety of CAD/CAM design software.

5 easy to control: the use of advanced UBS interface type DSP operating system, completely offline work, do not take up any computer resources, and can achieve DSP automatic start and stop. (optional handle control) can also use the macro control system.

6 worry free performance: with breakpoint continued carving, power recovery, processing time prediction and other functions, the real human nature design.

The Y axis adopts double motor drive, select matching, to ensure smooth movement.

It adopts high precision gear rack drive, fast speed, high accuracy.

The imported square linear guide, to ensure the accuracy of the machine can withstand heavy load.

We adopt international advanced technology dual chamber vacuum adsorption countertops, with a very strong suction vacuum pump, strong adsorption of materials of different sizes.

The table of humanized design, can adsorption, can also clamp the workpiece, easy to use.

The intelligent protection table, to prevent misuse may be damaging the surface. Intelligent processing cross-border protection, to prevent mechanical collision phenomenon caused by the design surface over the processing area.

The automatic lubrication system, just press, regular maintenance will be completed.

technical parameter

Working stroke 1300 * 2500 * 190mm

X, Y, Z structure rack screw

Repeated positioning accuracy 0.05mm

Max engraving speed 2000mm/min

The maximum running speed of 35000mm/min

Machining accuracy <0.04/300mm

Running mode step

Spindle 3KW water cooled spindle (optional 4.5 air-cooled spindle)

Spindle speed 0-24000r/min

Operating system handle Weihong

Spindle speed 6000-24000rpm

Working voltage AC380V/50Hz AC220V/50Hz

The tool diameter of 3.175 with 6 ~ 12.7

Run command G code *u00*.mmg*.plt
