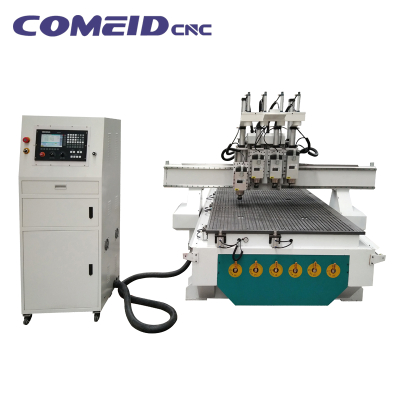

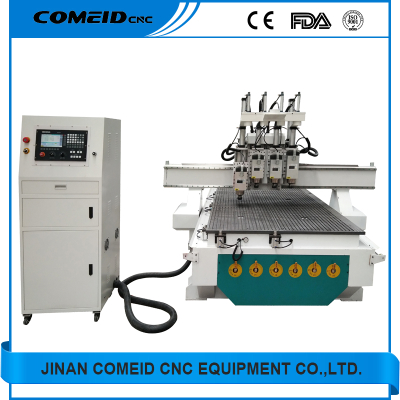

Pneumatic three automatic tool changing woodworking engraving machine designed for customers to improve efficiency, the three head using cylinder control can be arbitrarily cut

In exchange, can easily complete the design of the customer more than a multi program (processing the workpiece required for the knife in the three or less), which eliminates the need to manually change the middle

Knife, suitable for wooden doors, furniture, musical instruments in the production of multi - process products. This section of equipment a top three, can catch up with three single

Woodworking engraving machine, a double headed or three independent woodworking engraving machine, a woodworking engraving machine processing efficiency.

The application and advertising, furniture, door carving cutting processing.

Characteristic：

This machine is in line with the fastaccurate and three points for the woodworking industry design new products.

The bed body is thick body welding, a milling planer, artificial vibration aging, with high rigidity, high strength, good damping, small deformation characteristics etc..

The table adopts double cavity adsorption, independent control zone six solenoid valve has the advantages of energy saving and strong adsorption ability.

The strength of the vacuum system, to ensure that the automatic lubrication system in the process of dust cleaning, just press can complete the regular lubrication and maintenance.

Design the reasonable and perfect, is the ideal choice for the woodworking industry.

Technical parameter:

Working stroke (XYZ)

230mm * 2500mm * 1300mm

Maximum air velocity

50000mm/min

Max engraving speed

25m/min

Processing precision engraving

<0.5/300mm vacuum adsorption

Spindle motor

3.0KW [optional]

Spindle speed

6000 ~ 24000rpm

Cutter diameter

With the diameter of 2 mm 12.7

Transmission mode

XY high precision gear rack, Z imported ball screw

XYZ guide rail

Taiwan producing square linear guide rail

Control system

Micro red control system

working voltage

AC380V/50Hz
